Purpose Built

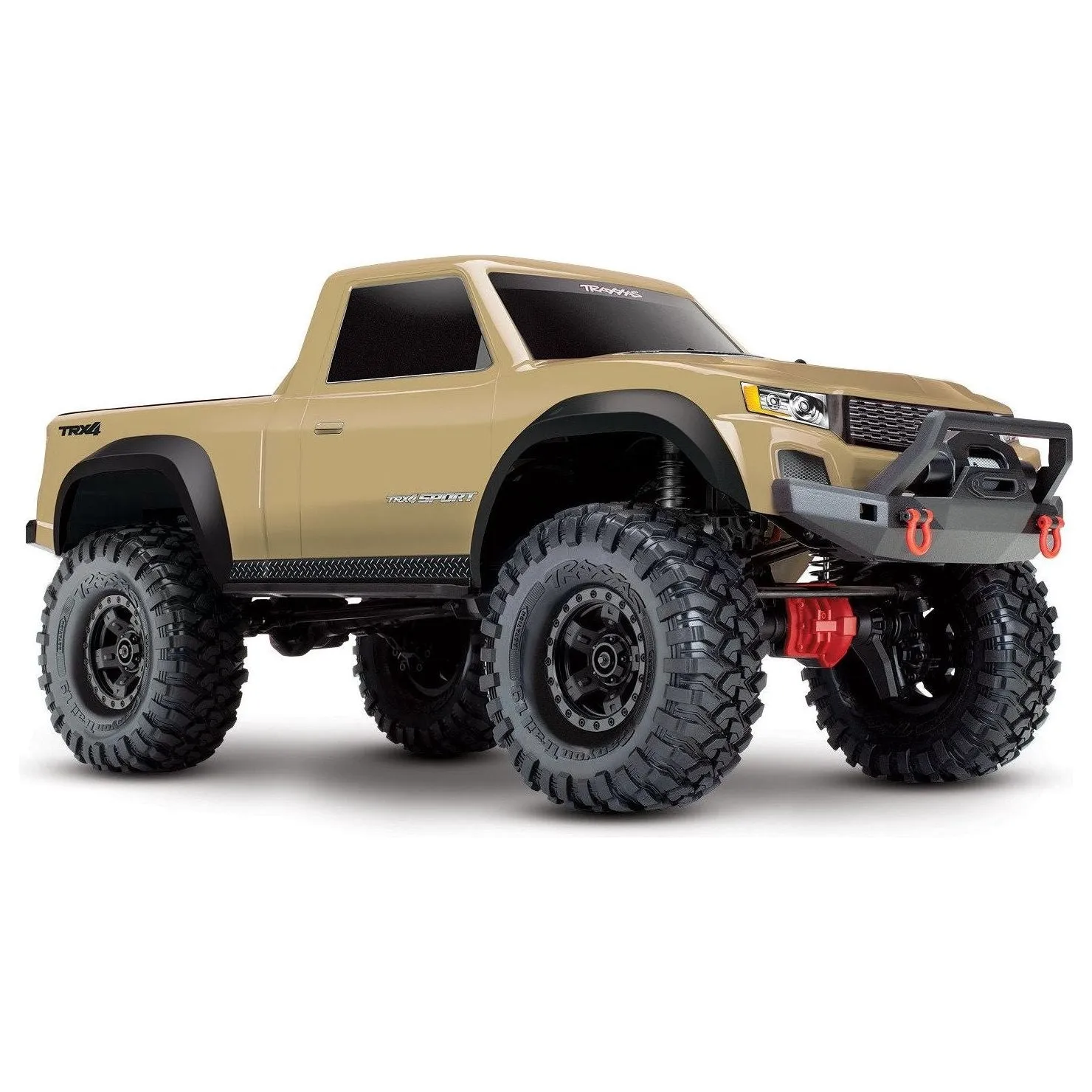

The TRX-4 Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sports unique bumpers, wheels, and body were designed for increased climbing versatility. Whether its a fun trail run or a hardcore technical crawl, the TRX-4 Sports capability and performance-built approach takes your outdoor adventure to a new level.
Innovation
Outfitted with radically innovative technology, the TRX-4 Sport minimizes weight to maximize performance.
Accessories
A wide range of performance and adventure accessories are available to transform your TRX-4 Sport into a highly detailed Scale & Trail crawler.
- Clear and Painted Bodies
- Expedition Rack
- Auxilliary Exterior LED Lighting for the Roof, Bumper, and Expedition Rack
- Traction Boards
- Side View Mirrors
- Molded Inner Fenders
- Snorkel
- Spare Tire Mount
- Bolt-on Headlights and Tail Lights
- Shovel, Axe, Jack & More!
Features
- Tough, Lightweight Pickup Truck Body
- Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
- Innovative Battery Compartment
- Rigid Steel Frame
- TQ 2.4GHz 2-channel transmitter
- Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
Specifications
- Length: 21.93 inches (557mm)
- Front Track: 9.78 inches (249mm)
- Rear Track: 9.78 inches (249mm)
- Ground Clearance: 3.14 inches (80mm)
- Weight: 5.79lb (2.63kg)
- Height: 9.47 inches (241mm)
- Wheelbase: 12.28 inches (312mm)
- Approach Angle: 58.82°
- Departure Angle: 45.83°
- Breakover Angle: 58.93°
- Front Shock Length: 3.54 inches (90mm)
- Rear Shock Length: 3.54 inches (90mm)
- Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
- Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
- Front Tires: 4.64 x 1.89 inches (118 x 48mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
- Hex Size: 12mm
- Speed Control: XL-5 HV
- Motor (electric): 21T Reverse Rotation
- Transmission: Single Speed
- Gear Pitch: 32P
- Differential Type: Spool (no differential)
- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft Driven 4WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
- Receiver: 6519
- Skill Level: 2
- Battery Tray: 158.75 L x 47 W x 23/26mm H
Contents
- TRX-4, Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQ 2.4GHz radio system
- High quality maintenance tools
Required to Run
- Batteries -TRX-4 accepts a wide variety of NiMH (4-7 cell) and LiPo (2s-3s) batteries.
- Charger -Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries -Four AA alkaline batteries for the transmitter.
